CL220-6-321

CL220-6-321

Crystalid Bass-Midrange

Dome material Crystalid
Application Bass-Midrange
Nominal diameter 220 MM
Sensitivity 86.5 Db
Frequency 40 Hz - 2500 Hz

Main Features

Proprietary new dome material
Low moving mass
Higher efficiency
40 Hz - 2500 Hz


3D Model
Print
Back to Overview

The CL220 – 11 – 321 is an 8 inch bass-midrange driver with a unique new dome material, supporting our portfolio as an alternative to our ceramic cone drivers.

The proprietary material was developed to achieve a lightweight yet extremely stiff dome with higher mechanical resilience, perfectly suited for robust high efficiency bass-midrange drivers.

The bass-midrange is built with the same parts as our famous C220-11-221, only the cone is different. It provides higher SPL because of the lighter cone material, but also a little lower cone resonance frequency.

Our classic ferrite overhung motor provides excellent cost-performance ratio.



Note: data for this driver is preliminary.

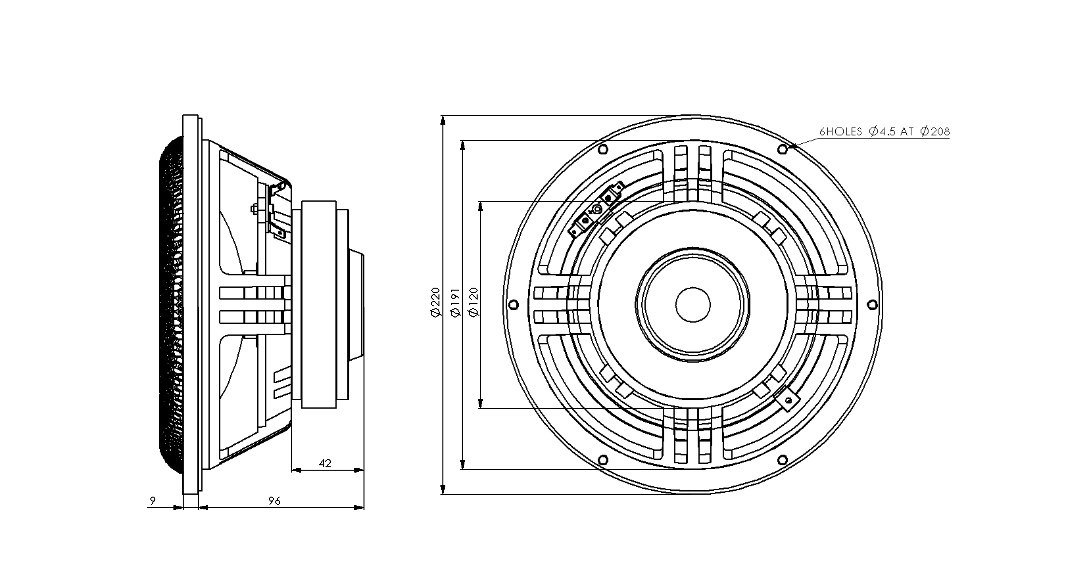

Mechanical Data

Specification   Value Unit
Overall diameter   220 mm
Cutout diameter   191 mm
Min. frontplate thickness   9 mm
Overall depth   105 mm
Motor assembly depth   42 mm
Motor assembly diameter   120 mm
Screwfitting   DIN 7984 M4
Terminal   2.8/4.8 mm
Shipping weight (pair)   3.8 Kg
Shipping box size (pair)   320/240/240 mm


Thiele Small Parameters (11 Ohm Version)

Specification   Value Unit
Sensitivity (2.83V / 1m) Lp 86.5 dB
DC-resistance) Re 10.2 Ohm
Resonance frequency Fs 27.2 Hz
Equivalent volume of air Vas 99.05 ltr
Mechanical Q Qms 6.5
Electrical Q Qes 0.35
Total Q Qts 0.34
Effective piston area Sd 226.98 Cm2
Moving mass Mms 25.25 g
Suspension compliance CMs 1.36 mm/n
Mechanical resistance Rms 0.66 Kg*s


voice coil parameters

Specification   Value Unit
Power handling P 120 W
Linear excursion Xmax +/-4 mm
Voice coil diameter   114 mm
Voice coil former material   Ti
Voice coil material   Cu
Voice coil inductance Le 0.17 mH
Force factor Bl 10.27 N/A
Motor type   Overhung
Ferrofluid filling   No


Frequency Response [db]

CL220-6-321 Frequency Response

Impedance [OHM]

CL220-6-321 - Impedance

Distortion [%]

CL220-6-321 - Distortion
<
