ASP190
Aluminium-Sandwich Passive Radiator
| Dome material | Aluminium-Sandwich |
| Application | Passive Radiator |
| Overall diameter | 190 MM |
| Cutout Diameter/Square | 170 MM |
| Overall depth | 85 MM |
| Motor assembly depth | -- MM |
| Motor assembly diameter | -- MM |

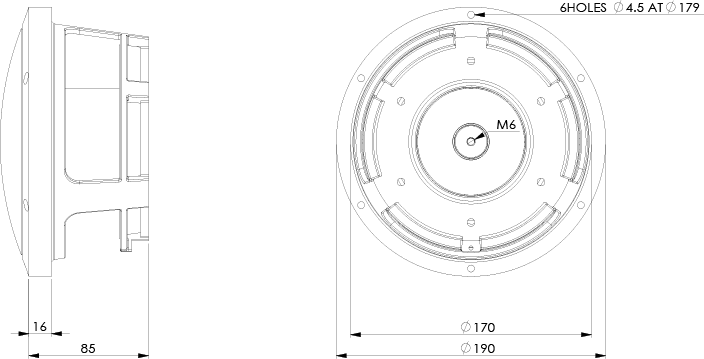

Mechanical Data
| Specification | Value | Unit | |
| Overall diameter | 190 | mm | |
| Cutout diameter | 170 | mm | |
| Min. frontplate thickness | 16 | mm | |
| Overall depth | 85 | mm | |
| Motor assembly depth | 0 | mm | |
| Motor assembly diameter | 0 | mm | |
| Screwfitting | DIN 7984 / 4.50mm | mm | |
| Terminal | 0 | mm | |
| Shipping weight (pair) | 7 | Kg | |
| Shipping box size (pair) | 245/440/245 | mm | |
Thiele Small Parameters
| Specification | Value | Unit | |
| Sensitivity (2.83V / 1m) | Spl | 0 | dB |
| DC-resistance | Re | 0 | Ohm |
| Resonance frequency | Fs | 33 | Hz |
| Equivalent volume of air | Vas | 27 | ltr |
| Mechanical Q | Qms | 0 | |
| Electrical Q | Qes | 0 | |
| Total Q | Qts | 0 | |
| Effective piston area | Sd | 202 | Cm2 |
| Moving mass | Mms | 50 | g |
| Suspension compliance | CMs | 0.46 | mm/n |
| Mechanical resistance | Rms | 2.2 | Kg*s |
voice coil parameters
| Specification | Value | Unit | |
| Power handling | P | 0 | W |
| Linear excursion | Xmax | 12 | mm |
| Voice coil diameter | 0 | mm | |
| Voice coil former material | 0 | ||
| Voice coil material | 0 | ||
| Voice coil inductance | Le | 0 | mH |
| Force factor | Bl | 0 | N/A |
| Motor type | 0 | ||
| Ferrofluid filling | No | ||
