Cl173-6-391

Crystalid Bass-Midrange

Dome material	Crystalid
Application	Bass-Midrange
Nominal diameter	173 MM
SENSITIVITY	87 db
FREQUENCY	40 HZ - 2.500 HZ

Main Features

Proprietary new dome material
Low moving mass
Higher Efficiency
40 HZ - 2.500 HZ

3D Model
Print
Back to Overview

The CL173 – 6 – 391 is a 7 inch bass-midrange driver with a unique new dome material, supporting our portfolio as an alternative to our ceramic cone drivers.

The proprietary material was developed to achieve a lightweight yet extremely stiff dome with higher mechanical resilience, perfectly suited for robust high efficiency bass-midrange drivers.

The bass-midrange is built with the same parts as our famous C173-6-191, only the cone is different. It provides higher SPL because of the lighter cone material, but also a little lower cone resonance frequency.

Our classic ferrite overhung motor provides excellent cost-performance ratio.

Note: data for this driver is preliminary.

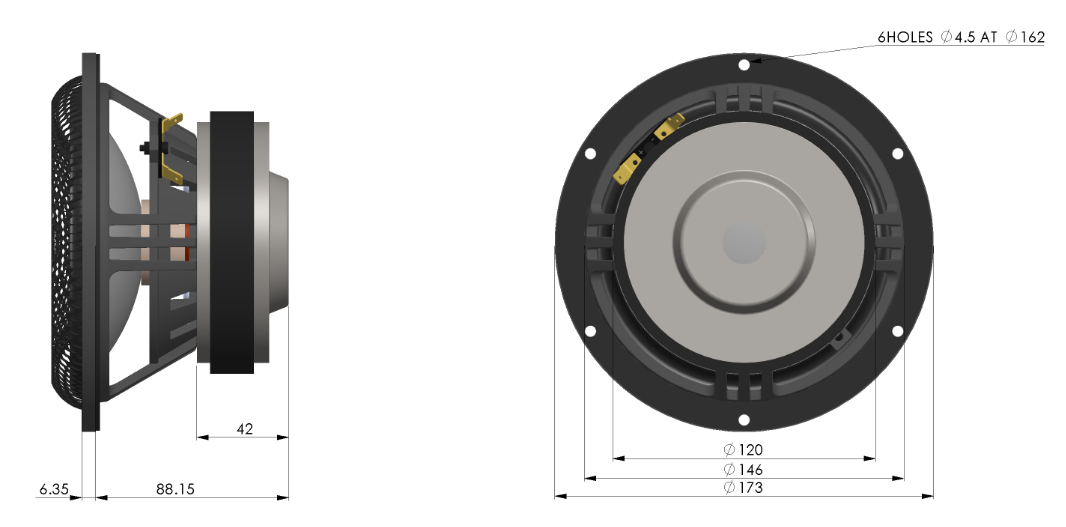

Mechanical Data

Specification	Value	Unit
Overall diameter	173	mm
Cutout diameter	146	mm
Min. frontplate thickness	6.35	mm
Overall depth	94.5	mm
Motor assembly depth	42	mm
Motor assembly diameter	120	mm
Screwfitting	DIN 7984 M4
Terminal	2.8/4.8	mm
Shipping weight (pair)	5.3	Kg
Shipping box size (pair)	304207207	mm

Thiele Small Parameters (11 OHM version)

Specification		Value	Unit
Sensitivity (2.83V / 1m)	Lp	87	dB
DC-resistance	Re	9.9	Ohm
Resonance frequency	Fs	51	Hz
Equivalent volume of air	Vas	17	ltr
Mechanical Q	Qms	3.92
Electrical Q	Qes	0.43
Total Q	Qts	0.39
Effective piston area	Sd	141.03	Cm2
Moving mass	Mms	16.09	g
Suspension compliance	CMs	0.60	mm/n
Mechanical resistance	Rms	1.32	Kg*s

voice coil parameters

Specification		Value	Unit
Power handling	P	120	W
Linear excursion	Xmax	+/-6	mm
Voice coil diameter		38	mm
Voice coil former material		Ti
Voice coil material		Cu
Voice coil inductance	Le	0.65	mH
Force factor	Bl	10.93	N/A
Motor type		Overhung
Ferrofluid filling		No

Frequency Response [db]

Impedance [OHM]
