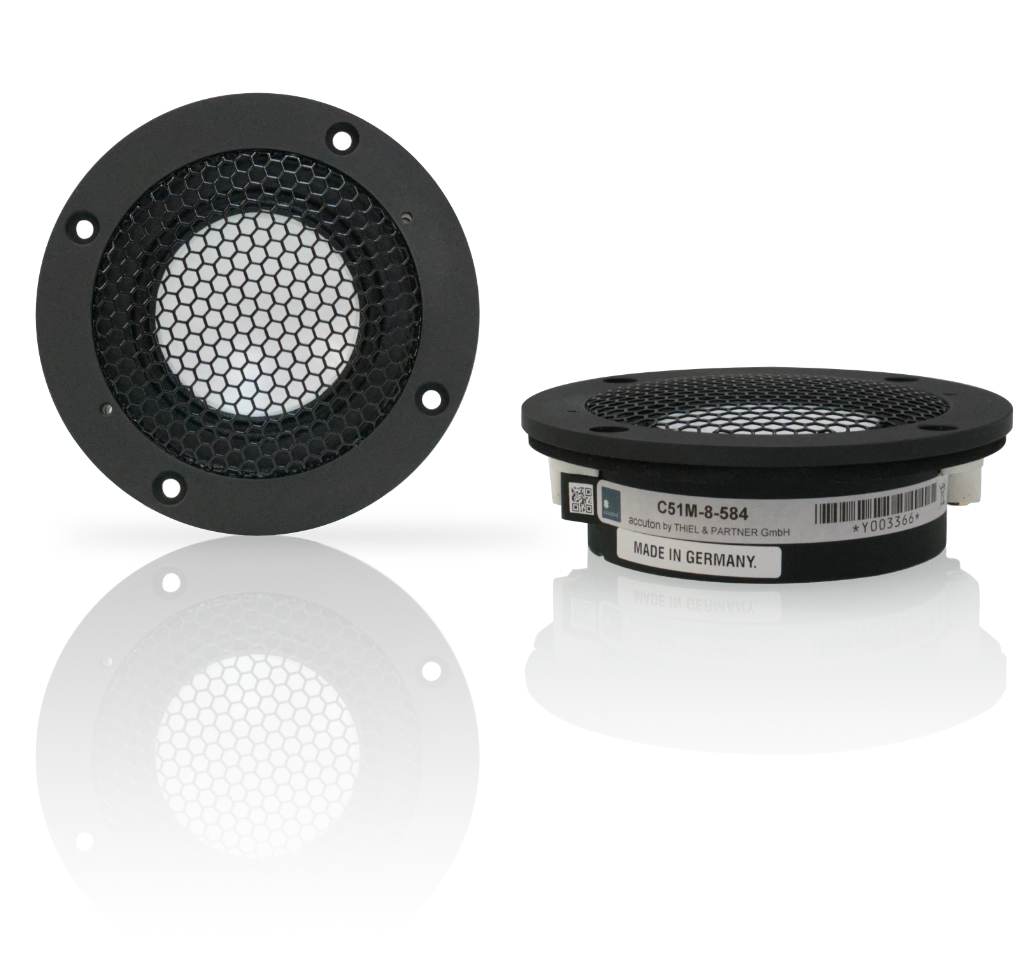

C51-8-584
Marine Driver
| Dome material | Ceramic |
| Application | |
| Overall diameter | 51 MM |
| Cutout Diameter | -- MM |
| Overall depth | -- MM |
| Motor assembly depth | -- MM |
| Motor assembly diameter | -- MM |
Main Features
Marine qualified
--
--
--
The C51M-8-584 is...
Mechanical Data
| Specification | Value | Unit | |
| Overall diameter | 51 | mm | |
| Cutout diameter | -- | mm | |
| Min. frontplate thickness | -- | mm | |
| Overall depth | -- | mm | |
| Motor assembly depth | -- | mm | |
| Motor assembly diameter | -- | mm | |
| Screwfitting | DIN -- / Ø -- | mm | |
| Terminal | +: -- x -- / -: --x -- | mm | |
| Shipping weight (pair) | -- | Kg | |
| Shipping box size (pair) | --/--/-- | mm | |
Thiele Small Parameters
| Specification | Value | Unit | |
| Efficiency | η0 | 0.76 | % |
| DC-resistance | Re | 8.20 | Ω |
| Resonance frequency | Fs | 765.05 | Hz |
| Equivalent volume of air | Vas | 0.03 | ltr |
| Mechanical Q | Qms | 8.21 | |
| Electrical Q | Qes | 1.57 | |
| Total Q | Qts | 1.32 | |
| Effective piston area | Sd | 23.76 | Cm2 |
| Moving mass | Mms | 1.25 | g |
| Suspension compliance | CMs | 0.03 | mm/n |
| Mechanical resistance | Rms | 0.73 | Ns/m |
voice coil parameters
| Specification | Value | Unit | |
| Power handling | P | -- | W |
| Linear excursion | Xmax | +/--- | mm |
| Voice coil diameter | -- | mm | |
| Voice coil former material | -- | ||
| Voice coil material | -- | ||
| Voice coil inductance | Le | 0.06 | mH |
| Force factor | Bl | 5.60 | N/A |
| Motor type | -- | ||
| Ferrofluid filling | -- | ||

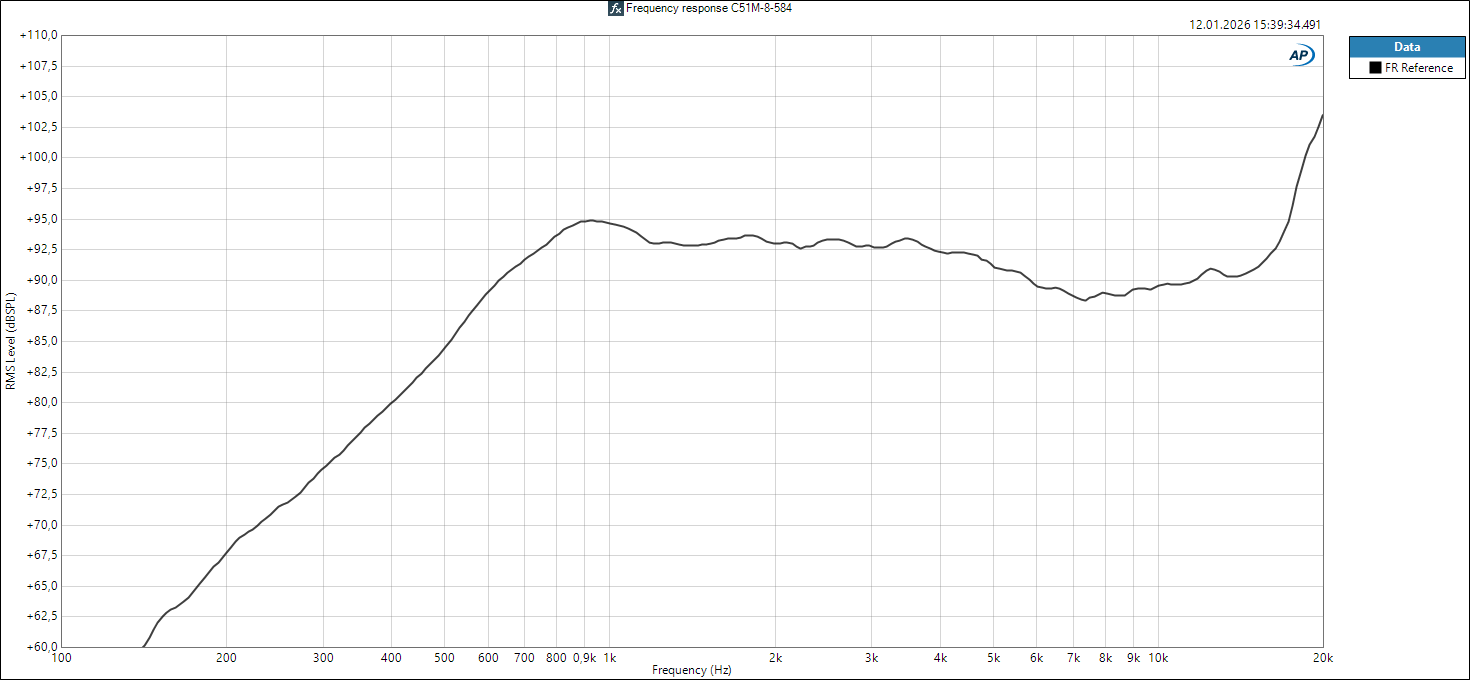

Frequency Response [db]

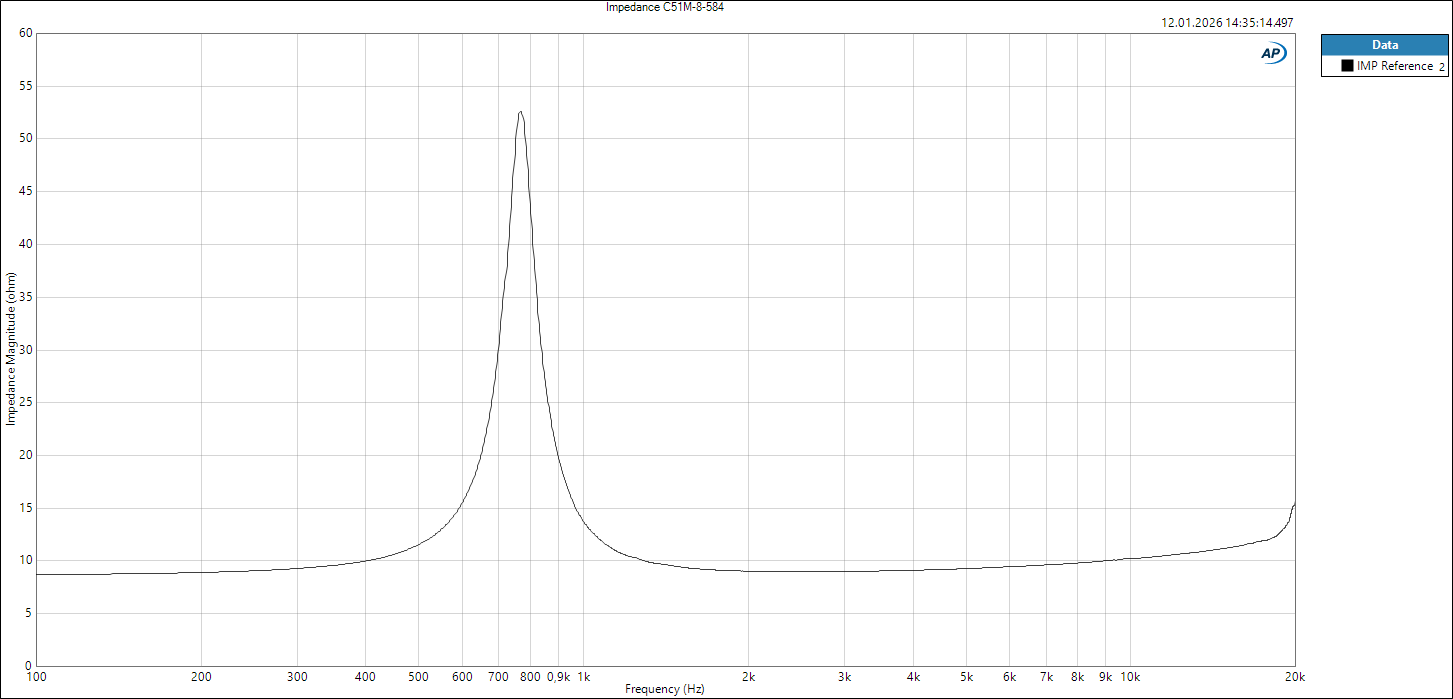

Impedance [OHM]

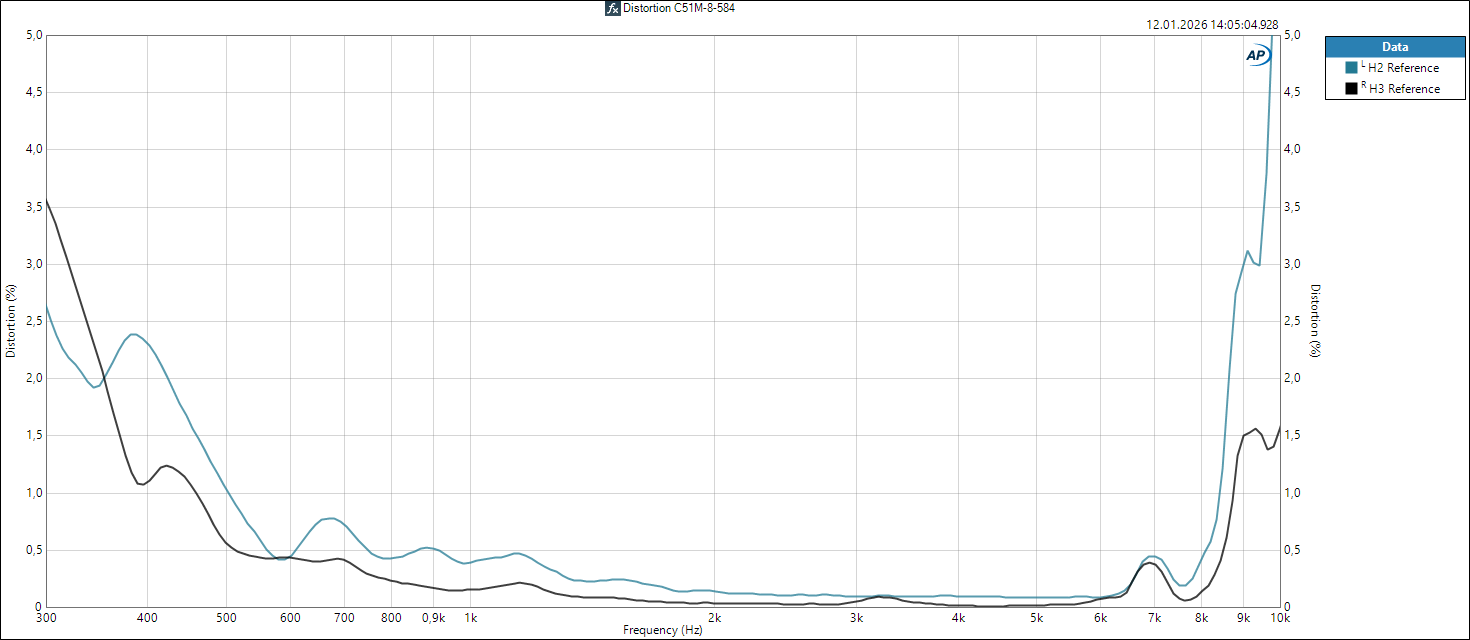

Distortion [%]
