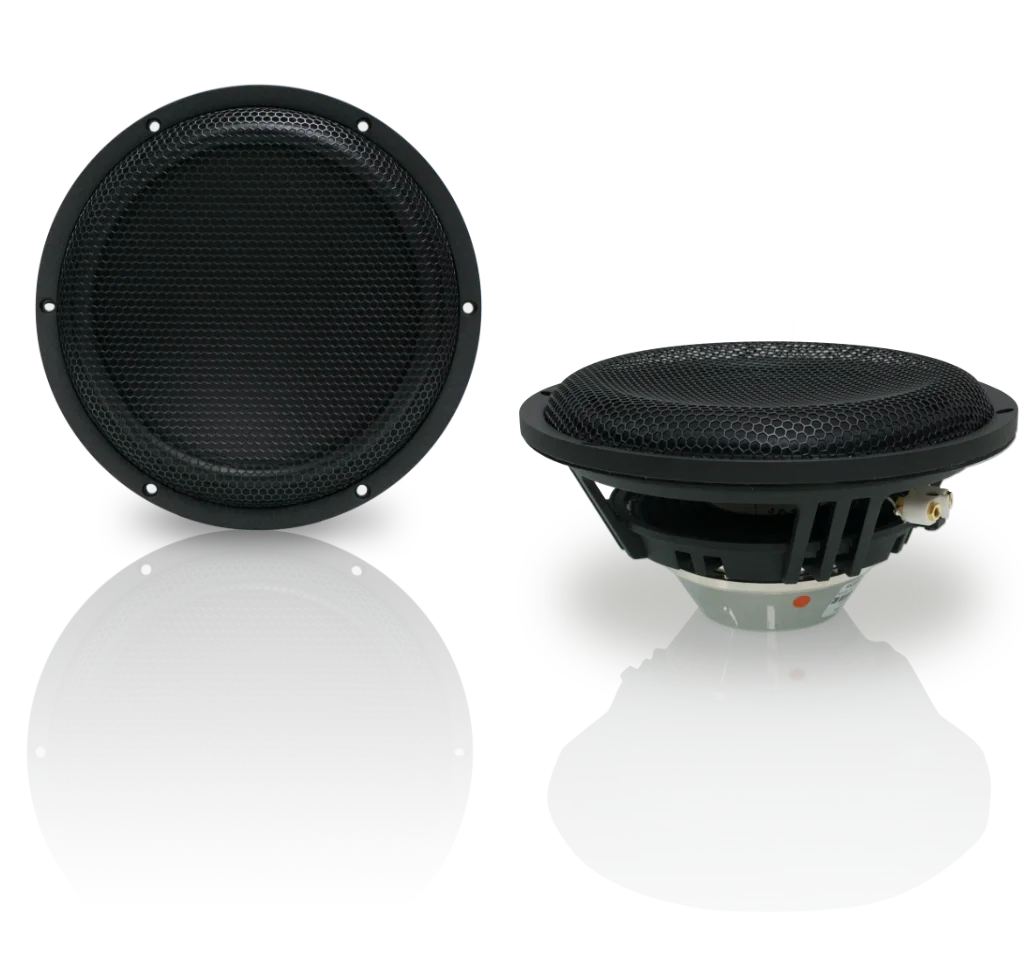

AS220M-5-775
Marine Bass Driver
| Dome material | Aluminium-Sandwich |
| Application | -- |
| Overall diameter | 220 MM |
| Cutout Diameter | -- MM |
| Overall depth | -- MM |
| Motor assembly depth | -- MM |
| Motor assembly diameter | -- MM |
Main Features
Marine qualified
...
...
...
The AS220M-5-775 is an...
Mechanical Data
| Specification | Value | Unit | |
| Overall diameter | 220 | mm | |
| Cutout diameter | mm | ||
| Min. frontplate thickness | mm | ||
| Overall depth | mm | ||
| Motor assembly depth | mm | ||
| Motor assembly diameter | mm | ||
| Screwfitting | DIN.. / Ø .. | mm | |
| Terminal | +: .. x .. / -: .. x .. | mm | |
| Shipping weight (pair) | .. | Kg | |
| Shipping box size (pair) | ../../.. | mm | |
Thiele Small Parameters
| Specification | Value | Unit | |
| Efficiency | η0 | 0.85 | % |
| DC-resistance | Re | 4.80 | Ω |
| Resonance frequency | Fs | 37.90 | Hz |
| Equivalent volume of air | Vas | 42.681 | ltr |
| Mechanical Q | Qms | 5.29 | |
| Electrical Q | Qes | 0.26 | |
| Total Q | Qts | 0.25 | |
| Effective piston area | Sd | 226.98 | Cm2 |
| Moving mass | Mms | 30.20 | g |
| Suspension compliance | CMs | 0.58 | mm/n |
| Mechanical resistance | Rms | 1.36 | Ns/m |
voice coil parameters
| Specification | Value | Unit | |
| Power handling | P | -- | W |
| Linear excursion | Xmax | -- | mm |
| Voice coil diameter | -- | mm | |
| Voice coil former material | -- | ||
| Voice coil material | -- | ||
| Voice coil inductance | Le | 0.22 | mH |
| Force factor | Bl | 11.51 | Tm |
| Motor type | -- | ||
| Ferrofluid filling | -- | ||

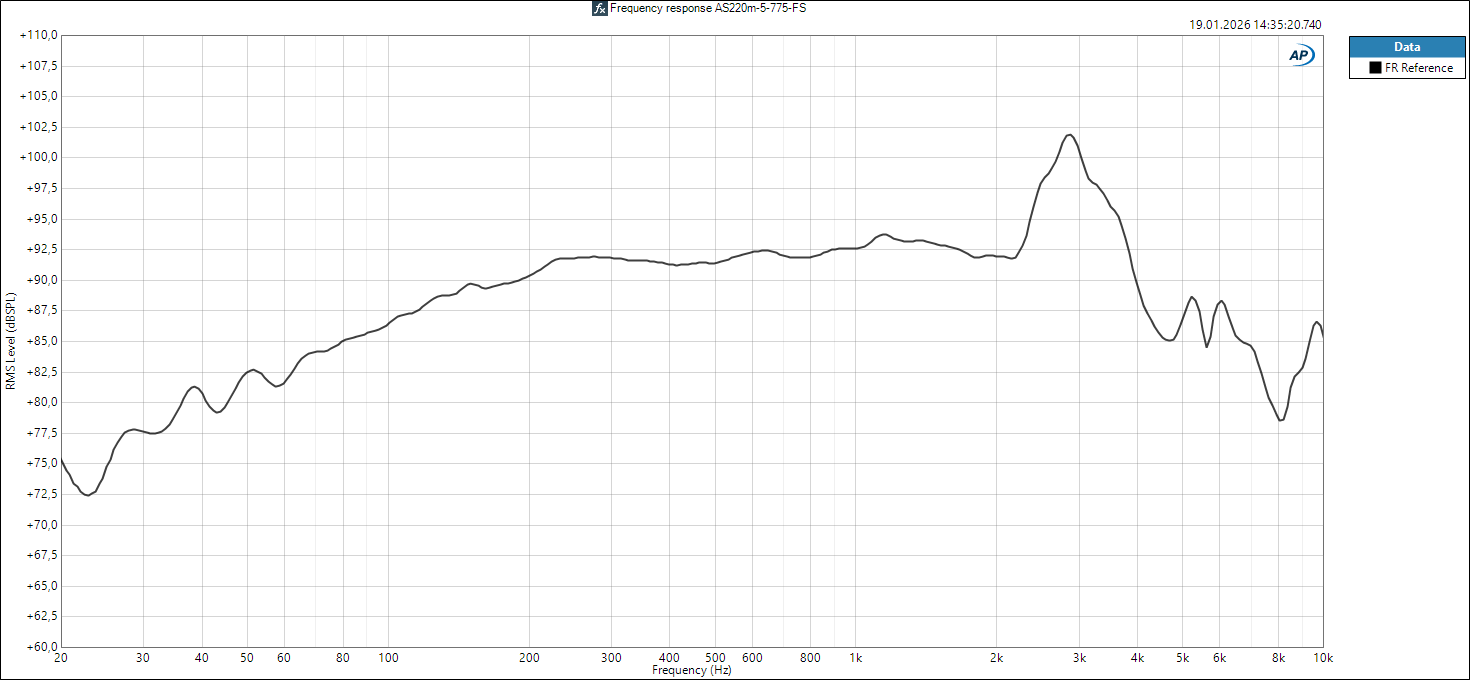

Frequency Response [db]

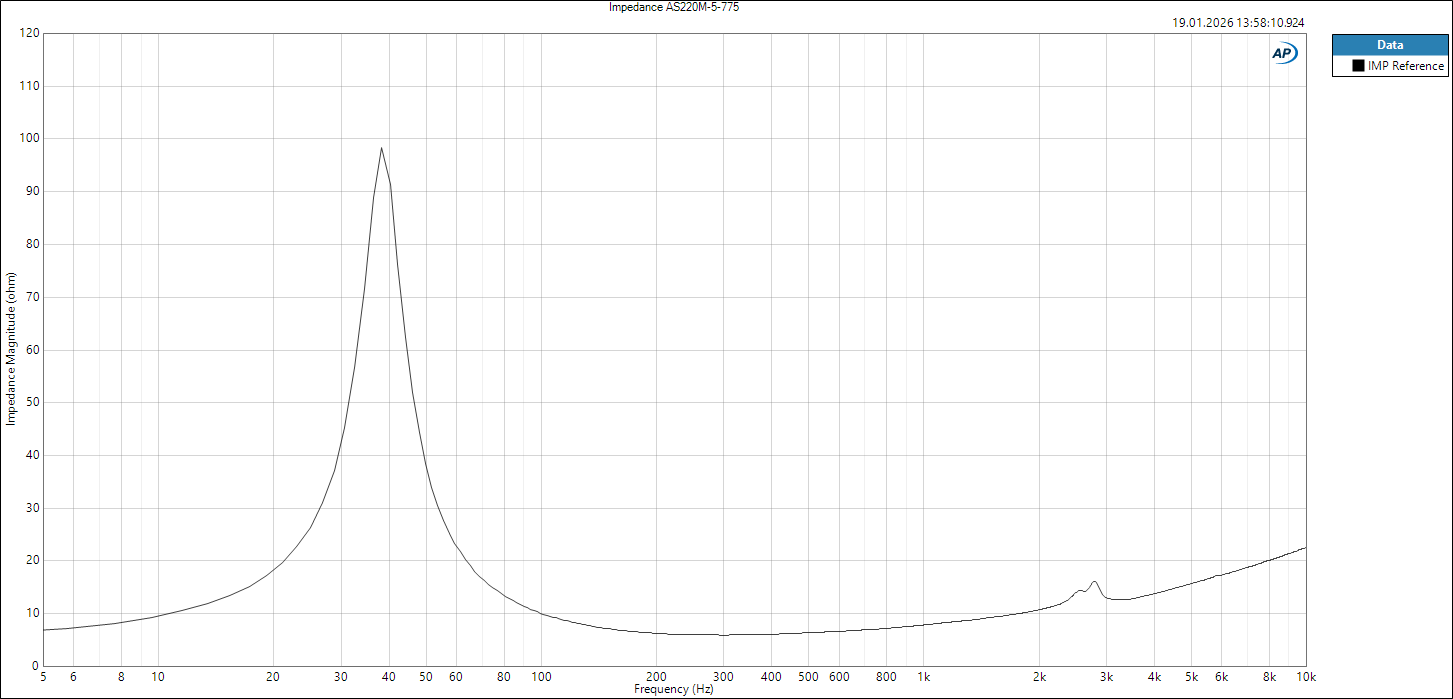

Impedance [OHM]

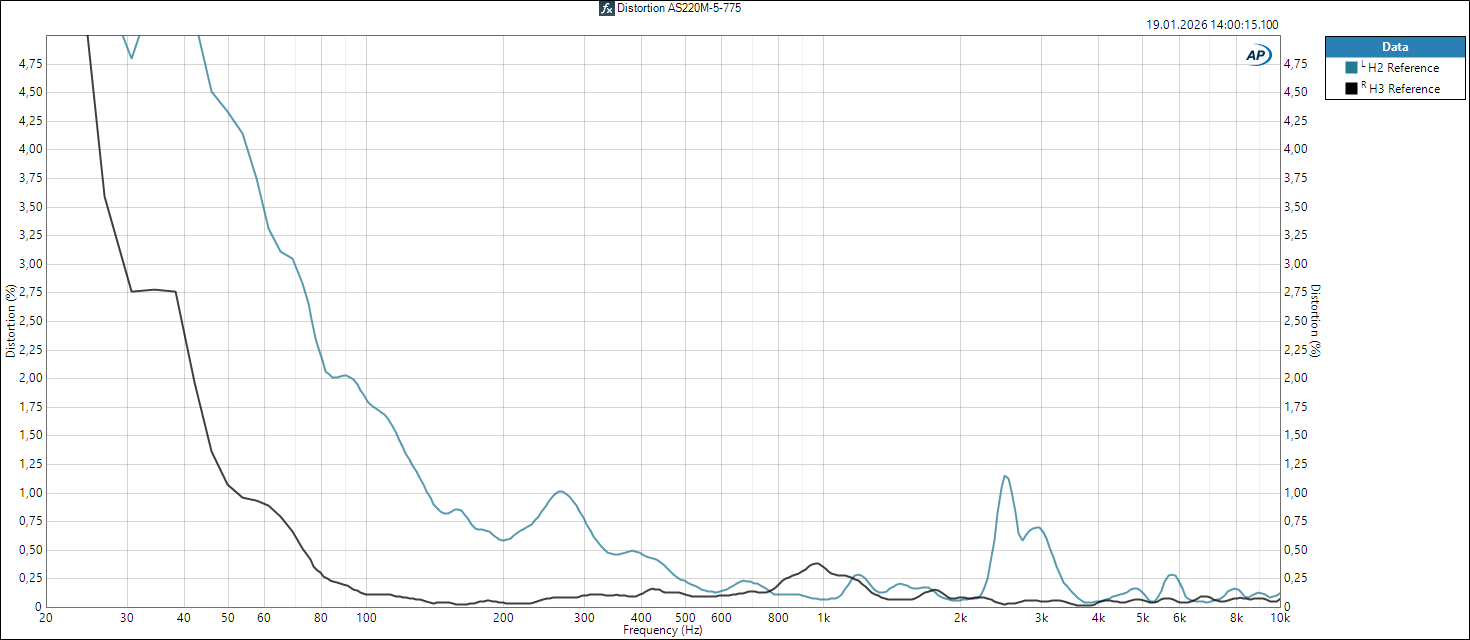

Distortion [%]
