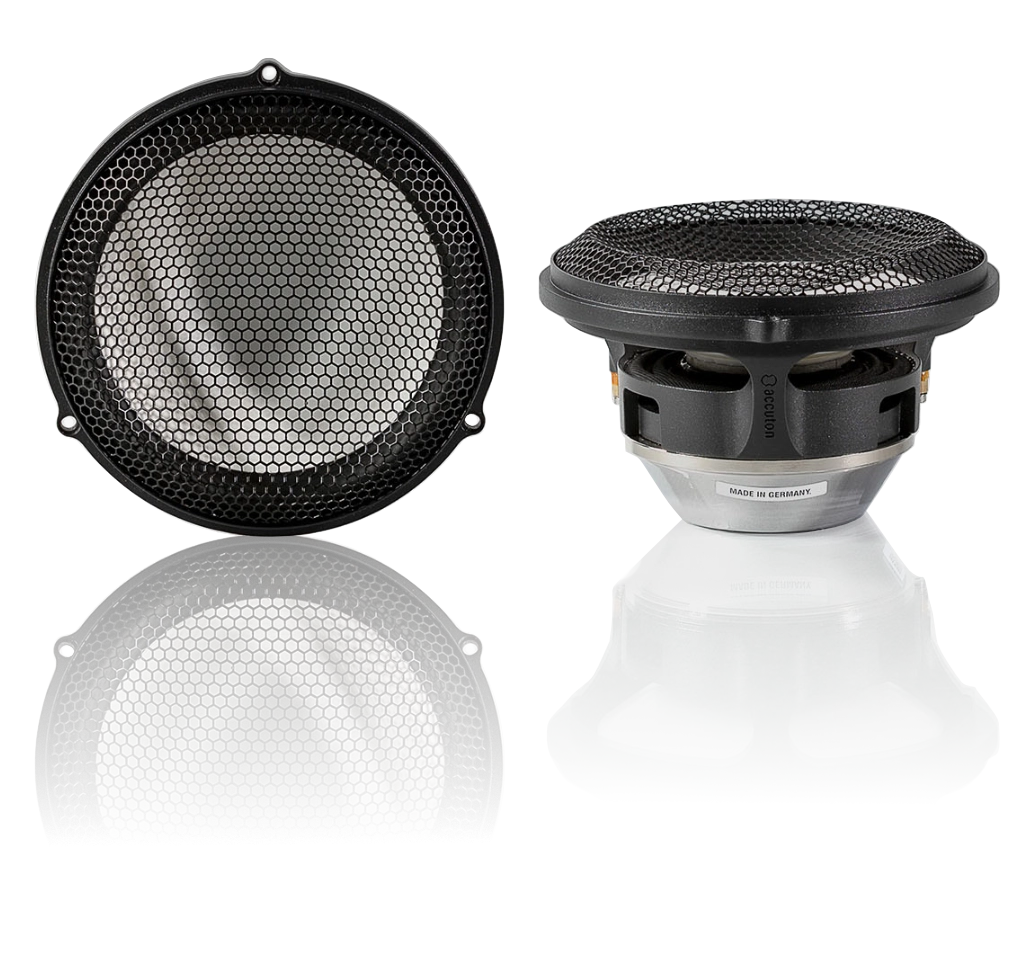

A165M-4-777

A165AM-4-777

Ceramic Bass-Midrange

Dome material	CerAMIC
Application	Bass-Midrange
Nominal diameter	165 MM
Sensitivity	--dB
Frequency	--KHZ

Main Features

Marine approved
--
--
--

Technology
Material
Print
Back to Overview

The A165M–04–777 is a ...

Mechanical Data

Specification		Value	Unit
Overall diameter		165	mm
Cutout diameter		--	mm
Min. frontplate thickness		--	mm
Overall depth		--	mm
Motor assembly depth		--	mm
Motor assembly diameter		--	mm
Screwfitting		-- * DIN --mm@ / Ø --mm	mm
Terminal		-- * M-- Thread	mm
Shipping weight (pair)		--	Kg
Shipping box size (pair)		--	mm

Thiele Small Parameters

Specification		Value	Unit
Sensitivity (2.83V / 1m)	Lp	--	dB
DC-resistance)	Re	4	Ω
Resonance frequency	Fs	56.44	Hz
Equivalent volume of air	Vas	14.59	ltr
Mechanical Q	Qms	3.38
Electrical Q	Qes	0.36
Total Q	Qts	0.33
Effective piston area	Sd	136.85	Cm2
Moving mass	Mms	14.48	g
Suspension compliance	CMs	0.55	mm/n
Mechanical resistance	Rms	1.52	Ns/m

voice coil parameters

Specification		Value	Unit
Power handling	P	--	W
Linear excursion	Xmax	+/---	mm
Voice coil diameter		--	mm
Voice coil former material		--
Voice coil material		--
Voice coil inductance	Le	0.09	mH
Force factor	Bl	7.55	Tm
Motor type		--
Ferrofluid filling		--

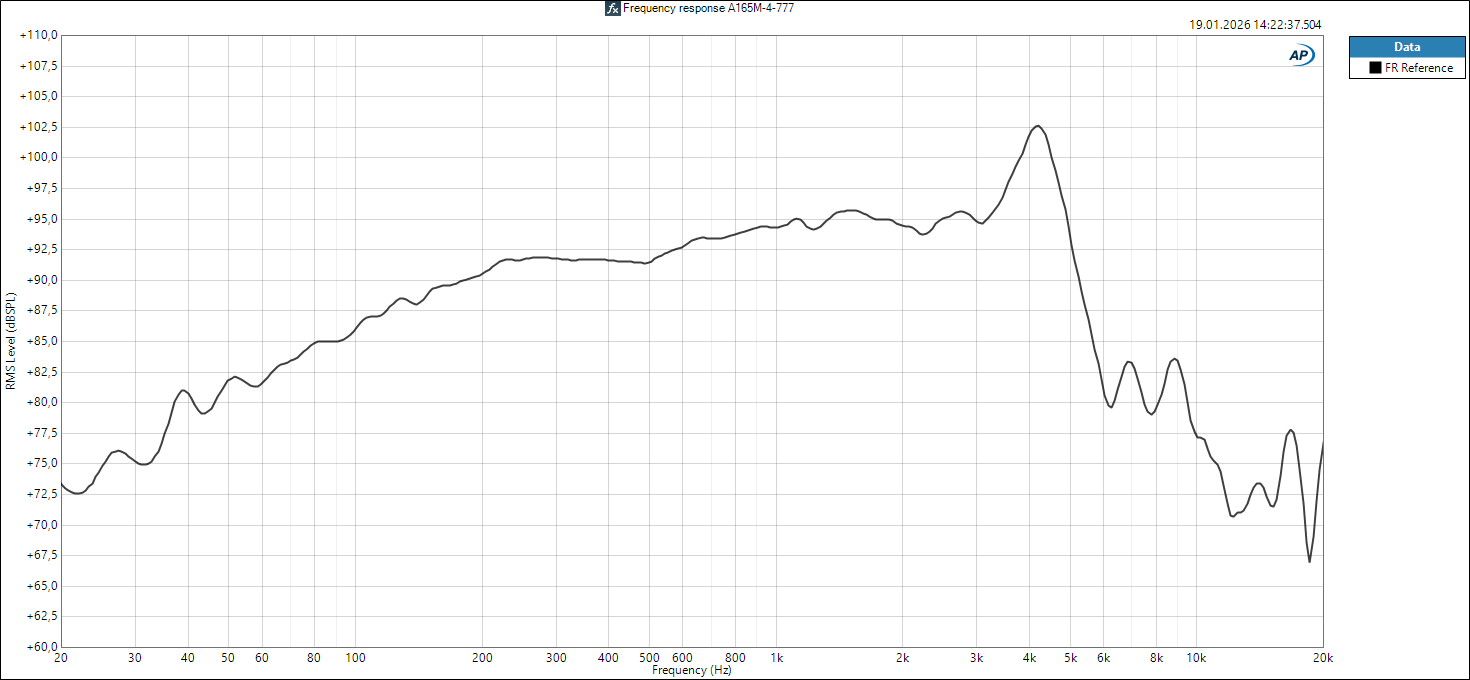

Frequency Response [db]

Frequency Response [Db] - A165M-4-777

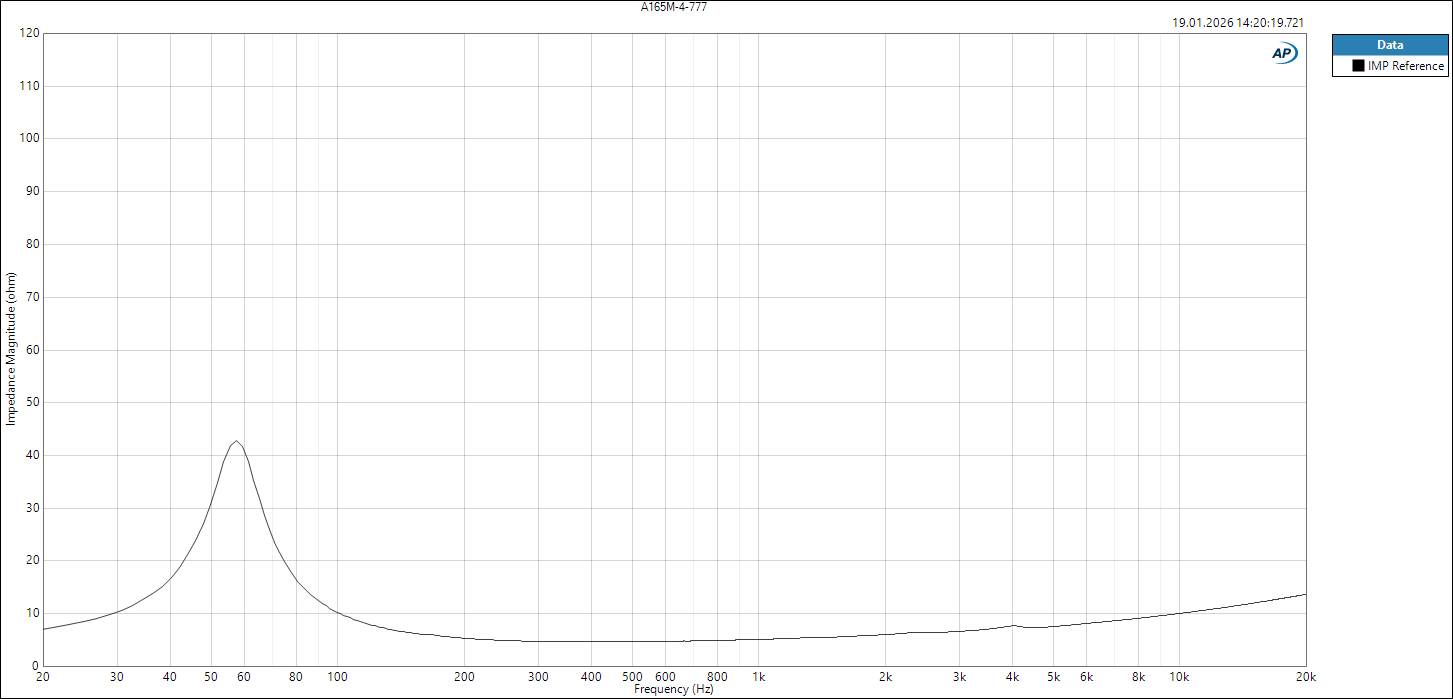

Impedance [OHM]

Impedance [Ohm] - A165M-4-777

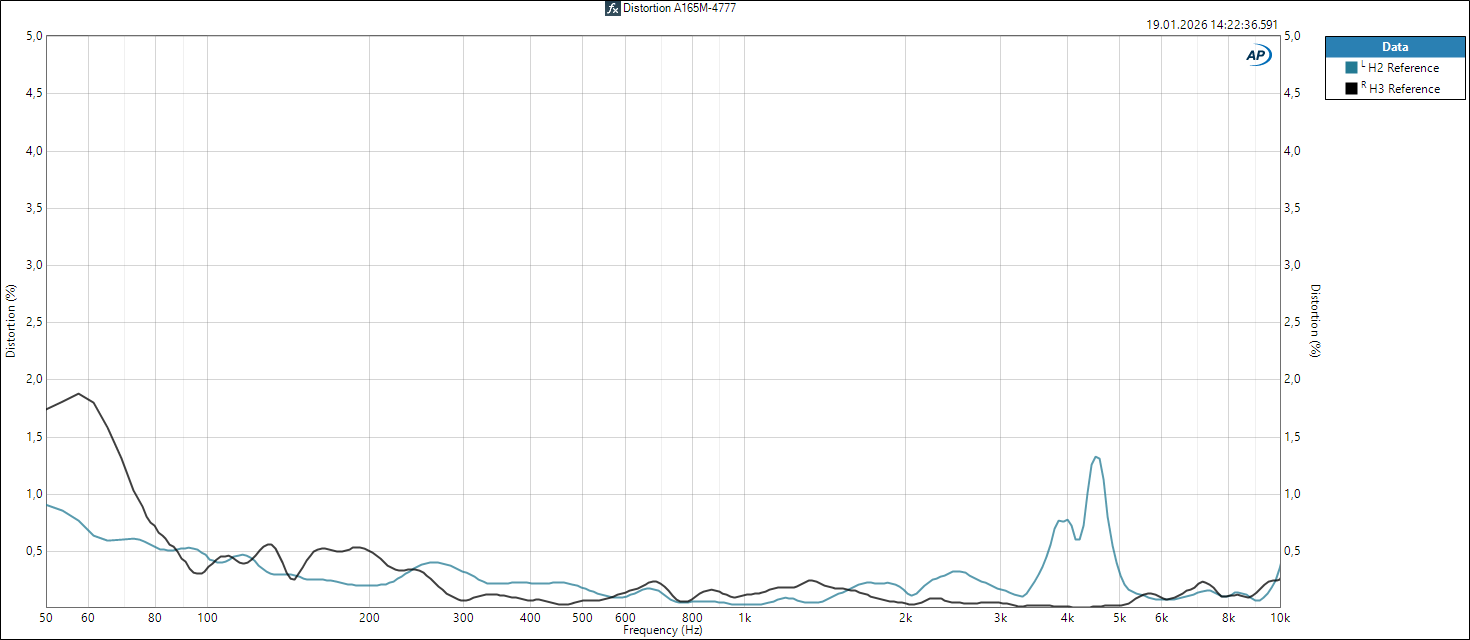

Distortion [%]

Distortion [%] - A165M-4-777
