BD 25-6-258 Cell
25 mm DIAMOND TWEETER
| Dome material |
Diamond |
| Application |
Tweeter |

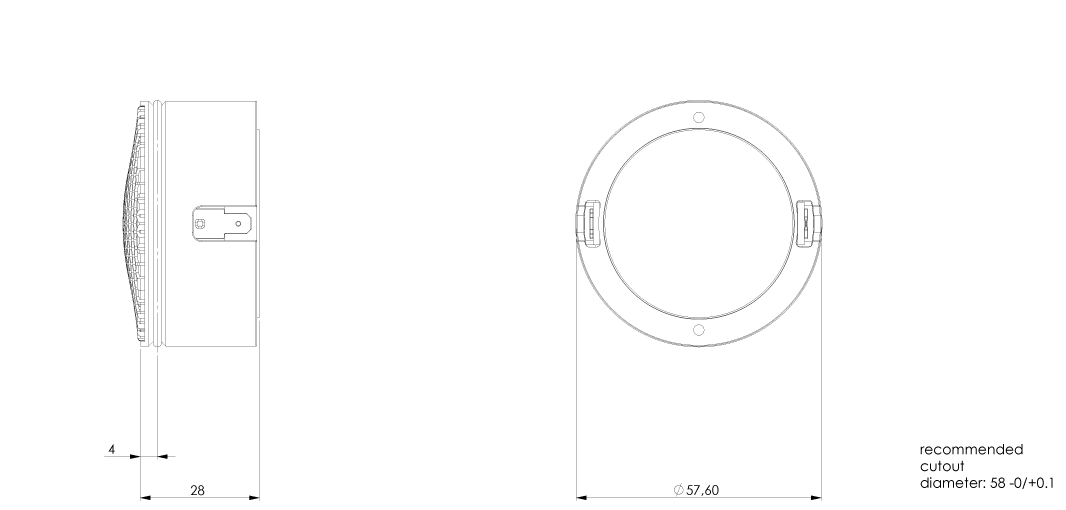

| Overall diameter |
57.6 MM |
| Cutout Diameter |
58 MM |
| Overall depth |
29 MM |
| Motor assembly depth |
-- |
| Motor assembly diameter |
-- |
Main Features
full featured cell concept
underhung motor design
vented vc & pole piece
no ferrofluid filling
2000 HZ - 33000 HZ
Technology
3D Model
Booklet
Print
Back to Overview
The BD25-6-258 is a 1 inch tweeter with ultra hard diamond dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required. A unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion. The new designed soft fabric surround centers the moving parts with improved linearity.
We recommend our BD25-6-258 in an application above 2000 Hz.
Our diamond speakers are only sold to loudspeaker producers
