C51-6-286 CELL
Ceramic Mid-Tweeter
| Dome material | CerAMIC |
| Application | Midrange |
| Overall diameter | 85.6 MM |
| Cutout Diameter | 86 MM |
| Overall depth | 87 MM |
| Motor assembly depth | -- |
| Motor assembly diameter | -- |
Main Features
full featured cell concept
underhung motor design
vented vc & pole piece
no ferrofluid filling
800 HZ - 10000 HZ
Technology
3D Model
Material
Print
Back to Overview
The C51-6-286 is a 2 inch tweeter with ultra hard ceramic dome in a 86 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required. A unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion. The new designed soft fabric surround centers the moving parts with improved linearity.
We recommend our C51-6-286 in an application above 800 Hz.

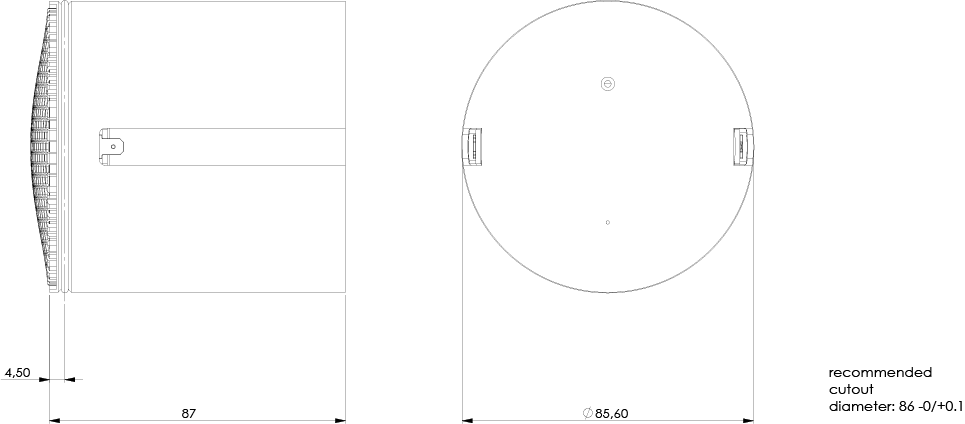

Mechanical Data
| Specification | Value | Unit | |
| Overall diameter | 85.6 | mm | |
| Cutout diameter | 86 | mm | |
| Min. frontplate thickness | 7 | mm | |
| Overall depth | 87 | mm | |
| Motor assembly depth | -- | mm | |
| Motor assembly diameter | -- | mm | |
| Screwfitting | -- | mm | |
| Terminal | +: 4.8 x 0.8 / -: 2.8 x 0.8 | mm | |
| Shipping weight (pair) | 2.30 | Kg | |
| Shipping box size (pair) | 220/115/115 | mm | |
Thiele Small Parameters
| Specification | Value | Unit | |
| Sensitivity (2.83V / 1m) | Spl | 93 | dB |
| DC-resistance | Re | 5.6 | Ohm |
| Resonance frequency | Fs | 581 | Hz |
| Equivalent volume of air | Vas | - | ltr |
| Mechanical Q | Qms | 4.86 | |
| Electrical Q | Qes | 1.61 | |
| Total Q | Qts | 1.21 | |
| Effective piston area | Sd | 24 | Cm2 |
| Moving mass | Mms | 0 | g |
| Suspension compliance | CMs | 0 | mm/n |
| Mechanical resistance | Rms | 0 | Kg*s |
voice coil parameters
| Specification | Value | Unit | |
| Power handling | P | 120 | W |
| Linear excursion | Xmax | +/-0.8 | mm |
| Voice coil diameter | -- | mm | |
| Voice coil former material | Ti | ||
| Voice coil material | Cu | ||
| Voice coil inductance | Le | -- | mH |
| Force factor | Bl | -- | N/A |
| Motor type | Underhung | ||
| Ferrofluid filling | No | ||
Frequency Response [db]
Impedance [OHM]
Distortion [%]
